Heterojunction offsets#

Heterojunctions are the basis of much of the semiconductor technology. From computer memory, to flat-panel display to photovoltaics, semiconductor heterojuctions underly much of the technology created in the past 100 years. Previosuly we constructed band-alignment-diagrams using the IP and EA from slab calculations. However, the details of the interface can also affect the line-up, from charge transfer and lattice strain effects, for example. For an excellent overview of the subject see: Band engineering at interfaces: theory and numerical experiments.

Our system#

For this demonstration we will choose a well-matched interface system: the interface between wurtzite structured ZnO and ZnS. In this case the lattice constants have been set to be those of ZnO. However, due to deformation potentials the value of the offset depends on the lattice parameter used.

Note The values in this tutorial are from very approximate calculations and no interface relaxation was allowed, therefore the absolute actual numbers should not be treated as meaningful.

Procedure#

We present two procedures for obtaining the offset from a heterojunction calulcation.

(i) We will intitally calculate the offset for the interface as we have modelled it, this essentially involves the calculation of the macroscopic average of the potential.

(ii) We will then look at how the effects of strain at the interface can be accounted for to yield a “natural band offset”, as outlined in Appl. Phys. Lett. 94, 212109 (2009).

Procedure (i)#

We can calculate the offset \(VBO\) with

\[VBO = \epsilon_{vbm}^a - \epsilon_{vbm}^b + \Delta V\]

where \(\epsilon_{vbm}\) are the eigenvalues of the highest occupied bands from bulk calculations of the two materials (ZnO and ZnS) and \(\Delta V\) is the offset in the potential across the interface.

We obtain the \(\epsilon_{vbm}\) values from the bulk OUTCAR files as in the slab model exercise.

import macrodensity as md

extrema_ZnO = md.get_band_extrema('OUTCAR_ZnO')
print("ZnO band edges:", extrema_ZnO)
extrema_ZnS = md.get_band_extrema('OUTCAR_ZnS')
print("ZnS band edges:", extrema_ZnS)

ZnO band edges: [1.0732, 1.6392]
ZnS band edges: [2.2761, 4.3586]

Interface calculation#

Now we do a calculation of the interface to get its potential profile. If using the VASP code, the potential file can be obtained by setting the LVHAR parameter in the INCAR file:

LVHAR = .TRUE.  # This generates a LOCPOT file with the potential

which will generate a LOCPOT file similar to the LOCPOT_slab stored in the Heterojunction directory. In this tutorial, we will use the LOCPOT.test file to analyse the potential and extract the value of \(\Delta V\).

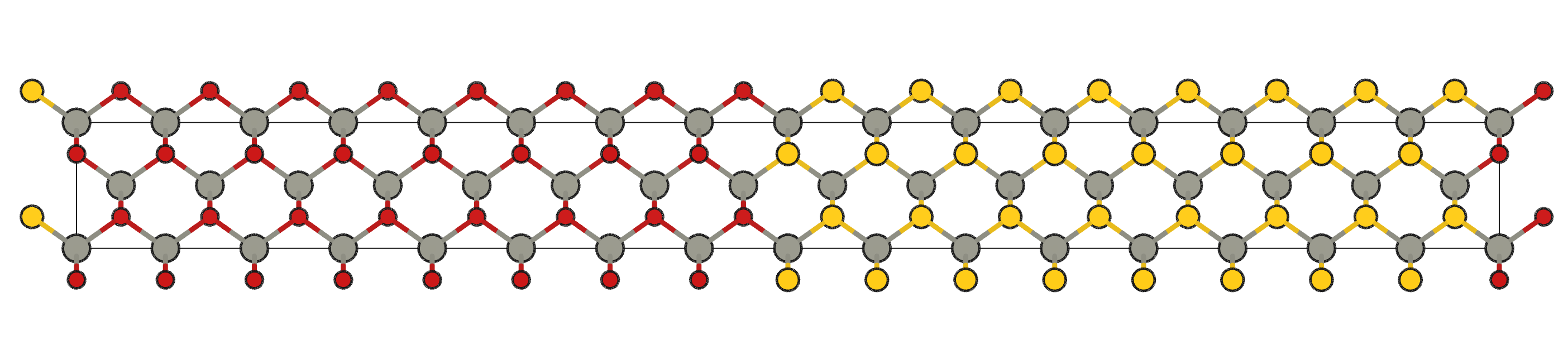

In the sample PlanarAverage.py file, all we have to edit are the top three lines. Of these the only one that is not obvious is the lattice_vector parameter. This is just the periodicity of the slab in the direction normal to the surface. In the picture below, this is just the distance between the layers of ZnO.

%matplotlib inline
import os
import macrodensity as md
import math
import numpy as np
import matplotlib.pyplot as plt
import matplotlib as mpl

input_file = 'LOCPOT_slab'
lattice_vector = 2.0 # roughly the distance in Angstroms between the repeating units of the slab
output_file = 'planar_average.csv'

# To perform average along z axis, we specify axis="z"
df, fig = md.plot_planar_average(
    input_file=input_file,
    lattice_vector=lattice_vector,
    axis="z",
    output_file=output_file,
)

Reading header information...
Reading 3D data using Pandas...
Average of the potential =  6.488965743335063e-14
Average of the average =  6.496655065764874e-14

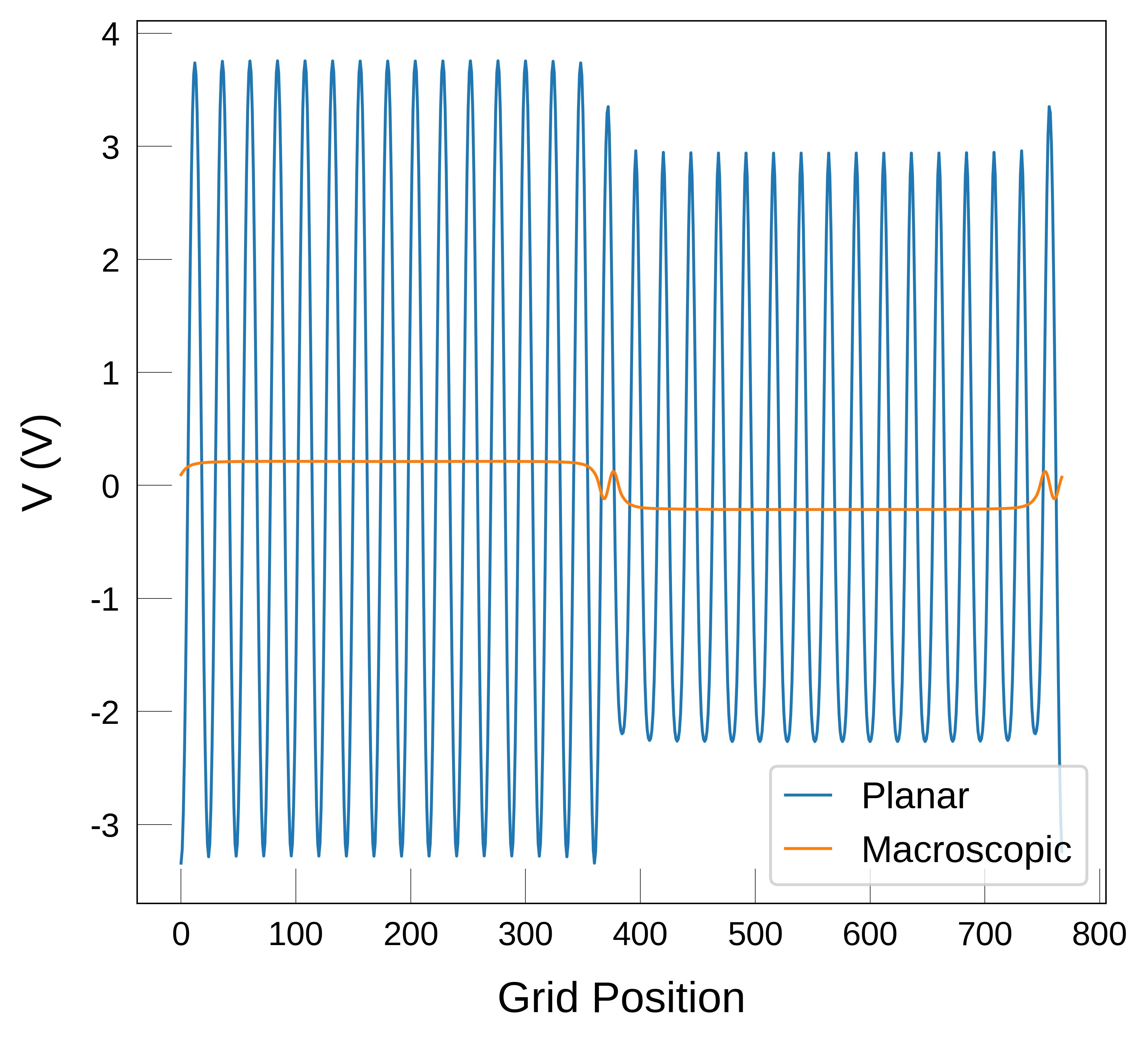

../../_images/3f2bd6ae8aab99181be9fbee8f6436c040b8d4901cb2d715653fbe78fc3713d8.png

Get \(\Delta V\)#

From the macroscopic average, we can find that the value of \(V\) at each plateau:

max_mac = df.Macroscopic.max()
min_mac = df.Macroscopic.min()

print("Values of V at the plateaus:", round(min_mac, 2), "V and", round(max_mac, 2), "V")
delta_V = max_mac - min_mac
print("Delta V:", round(delta_V, 2), "V")

Values of V at the plateaus: -0.21 V and 0.21 V
Delta V: 0.43 V

The offset#

Applying the equation from earlier, the VBO is

VBO = extrema_ZnS[0] - extrema_ZnO[0] + delta_V

print(f"VBO = {VBO:.2f} eV")

VBO = 1.63 eV

Procedure (ii)#

In this procedure we can take into account the fact that the band edge positions are affected by changes to the cell volume. To do this we first calculate the eigenvalues \(\epsilon_{VBM}\) at an average volume of the two materials.

extrema_ZnO_avg = md.io.get_band_extrema('OUTCAR_ZnO_av')
print("Extrema of ZnO:", extrema_ZnO_avg)
extrema_ZnS_avg = md.io.get_band_extrema('OUTCAR_ZnS_av')
print("Extrema of ZnS:", extrema_ZnS_avg)

Extrema of ZnO: [-2.464, -0.626]
Extrema of ZnS: [4.8288, 10.184]

The deformation potential#

To account for the effect of strain on the band positions we need to know the deformation potential \(\alpha\). In this case the values for \(\alpha\) of ZnO and ZnS (and many other systems) are available Phys. Rev. B 73, 245206.

\(\alpha_{ZnO} = 0.48\)

\(\alpha_{ZnS} = 0.83\)

The equation we now use is

\(VBO = (\epsilon_{vbm}^a + \alpha_a \partial \ln V_a )- (\epsilon_{vbm}^b + \alpha_b \partial \ln V_b) + \Delta V\)

Here the eigenvalues and offset potential are the same as in procedure (i), but calculated for an average volume cell. We also use the log of the change in volume of each phase multiplied by the deformation potential (\( \alpha_B \partial \ln V_B \)).

The potential alignment#

This procedure is the same as for procedure (i), but always using the average volume cell. Actually as we used the average cell in procedure (i), it turns out to be exactly the same, but we can do it again to reinforce.

input_file = 'LOCPOT_slab'
lattice_vector = 2.0
output_file = 'planar_average.csv'

df, fig = md.plot_planar_average(
    input_file=input_file,
    lattice_vector=lattice_vector,
    axis="z", output_file=output_file
)

Reading header information...
Reading 3D data using Pandas...
Average of the potential =  6.488965743335063e-14
Average of the average =  6.496655065764874e-14

max_mac = df.Macroscopic.max()
min_mac = df.Macroscopic.min()

print("Values of V at the plateaus:", round(min_mac, 2), "V and", round(max_mac, 2), "V")
delta_V = max_mac - min_mac
print("Delta V:", round(delta_V, 2), "V")

Values of V at the plateaus: -0.21 V and 0.21 V
Delta V: 0.43 V

As before the value of \(\Delta V\) is 0.43 V.

Volume change#

To get the values of \(\partial\ln V = \frac{\Delta V}{V_{av}}\), we compare the average volume to the equilibrium volumes of ZnO and ZnS. We can parse the volumes from the OUTCAR files using the function get_lattice_from_outcar as shown below:

from pymatgen.core.lattice import Lattice

def get_lattice_from_outcar(outcar_filename):
    """Parse lattice from OUTCAR file.
    Returns pymatgen.core.lattice.Lattice object.
    """
    # open file
    with open(outcar_filename, 'r') as f:
        # read lines
        lines = f.readlines()
    # Find first line with string "Lattice vectors:"
    for i, line in enumerate(lines):
        if "Lattice vectors:" in line:
            index_lattice = i
            break
    # Get next 4 lines
    lattice_lines = lines[index_lattice+2:index_lattice+5]
    # Get non-zero lattice vectors
    lattice_vectors = []
    for line in lattice_lines:
        line = line.split("= (")[1].split(")\n")[0]
        lattice_vectors.append([float(x) for x in line.split(",")])
    lattice = Lattice(lattice_vectors)
    return lattice

lattice_ZnO = get_lattice_from_outcar('OUTCAR_ZnO')
lattice_ZnS = get_lattice_from_outcar('OUTCAR_ZnS')
lattice_avg = get_lattice_from_outcar('OUTCAR_ZnS_av')
lattice_avg_ZnO = get_lattice_from_outcar('OUTCAR_ZnO_av') # same as lattice_avg
print(f"Volume of ZnO: {lattice_ZnO.volume:.2f} Angstrom^3")
print(f"Volume of ZnS: {lattice_ZnS.volume:.2f} Angstrom^3")
print(f"Average volume: {lattice_avg.volume:.2f} Angstrom^3")

Volume of ZnO: 47.55 Angstrom^3
Volume of ZnS: 76.88 Angstrom^3
Average volume: 61.04 Angstrom^3

# For ZnO:
dlnVa = (lattice_ZnO.volume - lattice_avg.volume) / lattice_avg.volume
# For ZnS:
dlnVb = (lattice_ZnS.volume - lattice_avg.volume) / lattice_avg.volume

Substituting these values into the equation
